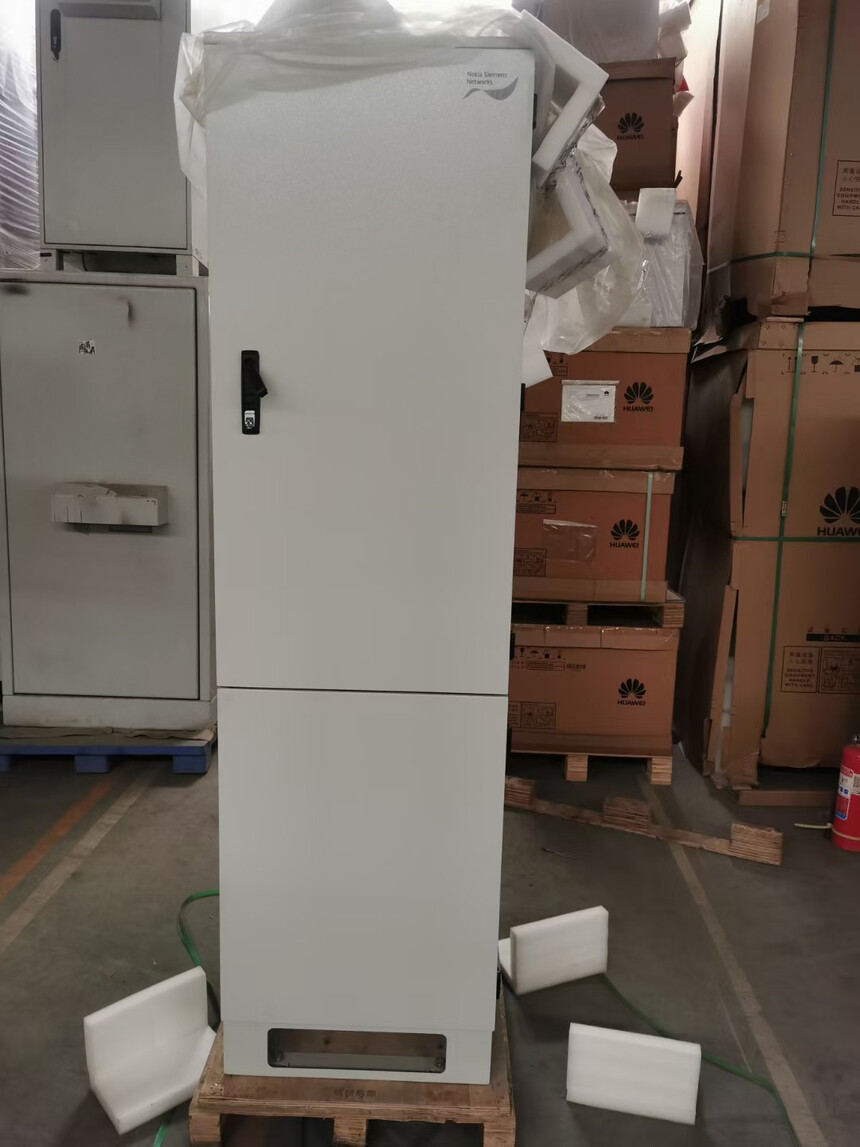

Emerson EPC481201800-HA1-HA2 Outdoor Integrated Communication Power Cabinet 48V120A System Based
on years of research and development of communication power supplies
and outdoor cabinets, Emerson has launched an integrated communication
power supply solution for outdoor use. The cabinet is divided into an
integrated cabinet and a split cabinet, mainly composed of rectifier
module, monitoring module, AC/DC distribution unit, lightning protection
system, temperature control system, anti-theft system, battery
compartment, user equipment compartment, etc. The system integrates
energy-saving sleep function, supports efficient hybrid insertion
function, and meets the construction concept of energy conservation,
environmental protection, green and low-carbon in the communication
industry. The Emerson EPC series outdoor DC power supply integrates
Emerson's reliable communication power supply system, comprehensive
power supply and distribution system, battery system, and high-quality
outdoor protection cabinet, providing reliable integrated energy
solutions for various outdoor communication equipment. WeChat images_ 20230318182800.jpg Product features: Integrated solution for integrated power platform and main equipment IP55 protection level, isolated from harsh outdoor environmental factors Excellent heat exchange technology ensures a good working environment within the system The
rectifier module adopts comprehensive soft switch patented technology
and dormant energy-saving patents, achieving high efficiency and energy
conservation Multiple installation methods such as rooftops and iron towers facilitate the selection of outdoor station locations Non destructive hot swapping technology for rectifier modules, plug and play, replacement time less than 1 minute Perfect battery management, effectively improving the performance and service life of battery packs Networked design, providing multiple communication interfaces for flexible remote monitoring networking Complete fault protection and alarm functions Technical specifications: Input voltage: 80-300Vac Input frequency: 45-65Hz Output voltage: -42~-58Vdc Full capacity: 120A System efficiency:>92% Rectifier module: R48-1800 Monitoring module: PSM-D21 Protection level: IP55 Working temperature: -40 ℃~45 ℃ (northern type) WeChat images_ 202303181828001.jpg -10 ℃~45 ℃ (Southern type) Physical size: 1500mm (H) × 600mm(W) × 630mm(D) Battery compartment: 660mm (H) × 534mm(W) × 558mm (D) (double layer) System weight:<150kg (excluding rectifier module and battery pack) Highly integrated design with 3 built-in batteries, effectively utilizing the area of the computer room Efficient rectification module efficiency>96%, energy saving and emission reduction Improved module sleep function to further improve system efficiency The working environment temperature range of the rectifier module is -40 ° C~+75'C. 55 "C, and the output is not derated The rectifier module and monitoring both support hot swapping technology, making installation and maintenance convenient Intelligent battery management and protection, extending battery life Battery anti reverse connection design, effectively avoiding safety and equipment damage caused by battery reverse connection Supports 5 analog inputs and 9 switching inputs, 8 dry contact outputs, saving on environmental collector expenses ●
In band transmission networking can be achieved through Huawei's main
equipment, saving transmission resources and improving the reliability
of power network management Outdoor power supply products have been
widely used in communication sites of major operators and industry
customers. They can be equipped with main equipment such as BBUs and
batteries, and each cabinet can form a station. This helps customers
achieve rapid deployment of the station, solving the problems of
difficult site addressing, deployment, and high rent. At the same time,
it helps to save energy and reduce emissions. Compared to traditional
indoor sites, the annual cooling energy consumption is saved by more
than 40%. Simple: Multiple installation methods, easy location
selection, easy deployment, remote centralized management of network
management, easy operation and maintenance; Efficient: 1U high power
density rectifier module (42.7W/incspan), industry leading module
efficiency (up to 98%), reliable output at high temperatures (no
derating of output below 55 ℃) WeChat images_ 202303181828003.jpg Emerson
produces high-tech, high-precision, and high-quality high-end power
supply products based on high-precision manufacturing technology with
high production capacity. Provide localized services and support to
customers through a global sales network. Emerson is engaged in the
research and development and production of uninterruptible power
supplies (UPS), with a history of 25 years. Emerson UPS power supply
has obtained certifications from the United States, Canada, the United
Kingdom, the European Community, Germany, and other countries, and is a
UPS supplier with ISO90001 certification. Emerson UPS is an
international power company that values commercial reputation and is
responsible for its customers. The group has invested in establishing a
UPS manufacturing factory in China. Emerson UPS power supplies are sold globally, with branches and research centers located around the world.
